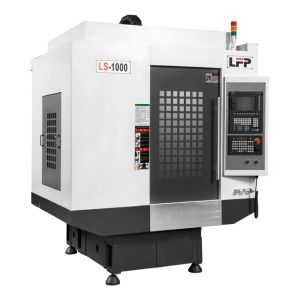

LS-1000 Heavy-Duty Cast Iron CNC Milling Drilling Center With M80 Controller High Precision Stability Outstanding Performance
Lishang Precision LS-1000 drilling and milling center: high rigidity, precision, stability, outstanding performance. Gray cast iron—strong, wear-resistant, fits light high-speed machining, ensuring stability. High-speed spindle motor direct connection: fast response, less noise/backlash/vibration, better precision/efficiency.
Three-axis rigid linear rails: low friction/noise; precision screws with pre-tension for stability/precision. M80 controller (independently developed): strong monitoring/expansion; user-friendly, pre-set solutions, easy to use.
Product specification
| Item | Unit | LS-1000 |
| Table size | mm | 1200*600 |
| X/Y/Z three-axis travel | mm | 1100/650/410(21T) | 1100/650/400(26T) |
| Distance from spindle nose to table | mm | 155~565(21T) | 155~555(26T) |
| T-slot of table (number of slots - slot width * width between slots) | mm | 5-18*100 |
| Spindle speed (optional) | r/min | 20-20000(24000) |
| Spindle taper | / | BT30 |
| X/Y/Z three-axis rapid movement | m/min | 36/36/36 |
| Tool magazine capacity (optional) | Bundle | 21(26) |
| Tool weight | kg | 3 |
| Tool length | mm | 200 |
Product Feature
1. The whole machine is made of gray cast iron, which is high in strength and wear-resistant, meeting the requirements of light and high speed.
2. The high-speed spindle motor is equipped with a direct-connected spindle, which has fast response, improves transmission noise, backlash, vibration, and improves precision and efficiency.
3. Three-axis high-rigidity linear rails, low friction and low noise; precision screw with pre-tensioned structure.
4. Independent secondary development of M80 control device, strong monitoring and expansion functions; friendly human-machine interface, pre-set efficient solutions, and high ease of use.
Application
It is mainly used for batch processing of small and medium-sized aluminum materials such as boxes, plates, discs, valves, shells, etc. in general automobile, communication, 5G and other industries.
